PRODUCT CODE 6002

SANIFLO SANITOP UP

Complete product information and installation guide for the Saniflo Sanitop UP 6002 macerator pump, including connection sizes, installation requirements, pumping distances, electrical information, maintenance and troubleshooting.

400W MOTOR

2 INLETS

5m MAX HEIGHT

46dB NOISE LEVEL

35°C MAX INLET TEMP

6002 PRODUCT CODE

SANIFLO • PRODUCT CODE 6002

Saniflo Sanitop UP Macerator Pump

Designed for a WC and wash basin installation. View the complete product listing and order the Sanitop UP directly from Macerator-Pumps.com.

✓ WC + Wash Basin ✓ 2 Inlets ✓ 400W Motor ✓ Up to 5m Vertical Lift

BUY NOW £475

View Product & Buy Now →

PRODUCT INFORMATION

About the Saniflo Sanitop UP 6002

The Sanitop UP is a domestic macerator designed for a horizontally connected WC and wash basin. It provides two inlets and allows wastewater to be pumped where conventional gravity drainage is difficult.

🚽

WC & Wash Basin

Designed specifically for installations requiring a WC together with a wash basin.

🔧

Top Maintenance Access

Access from the top of the unit helps simplify maintenance and inspection.

⚙️

Direct Basket Access

The basket can be accessed in the event of a blockage without dismantling the complete unit or emptying the tank.

↔️

Replacement Friendly

Identical pipe centres help make replacement of an older compatible Sanitop model easier.

Saniflo Sanitop UP 6002 installation guide

Saniflo Sanitop UP installation overview and pipework guidance.

APPLICATIONS

What Can the Sanitop UP Connect To?

The Sanitop UP 6002 is a two-inlet macerator intended for a WC and wash basin.

🚽 WC / Toilet

🚰 Wash Basin

PIPE CONNECTIONS

Sanitop UP Connection Sizes

100 mm WC Inlet External WC connection.

40 mm Wash Basin Inlet External sanitary waste inlet.

22 / 28 / 32 Discharge External pumped discharge sizes in mm.

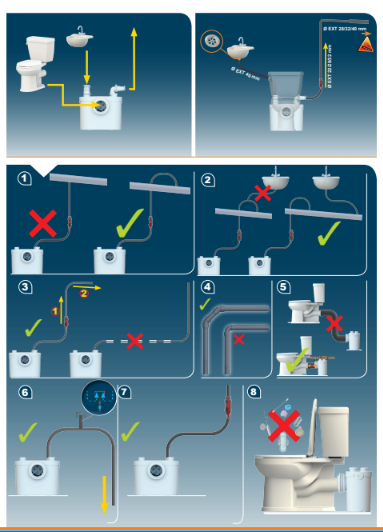

Sanitop UP pipework and discharge connection guidance.

INSTALLATION GUIDE

Installing the Saniflo Sanitop UP

Plan the WC inlet, wash basin connection, discharge route, electrical supply and future maintenance access before permanently securing the installation.

Position the Sanitop

Install the unit in the same room as the WC and connected wash basin.

Keep the Unit Accessible

Leave sufficient access for future inspection, maintenance and servicing.

Install on a Level Floor

Position the tank on a perfectly level floor so the anti-vibration pads can work effectively.

Keep Clear of the Wall

Position the tank so it does not touch the wall, helping reduce transmitted vibration.

Connect the WC

Securely connect the horizontal WC outlet to the large rear inlet.

Connect the Wash Basin

Connect the wash basin waste to the 40 mm sanitary appliance inlet.

Connect the Discharge

Use the appropriate 22, 28 or 32 mm external discharge configuration.

Commission & Test

Once the plumbing and electrical work is complete, flush the WC and inspect all connections for leaks.

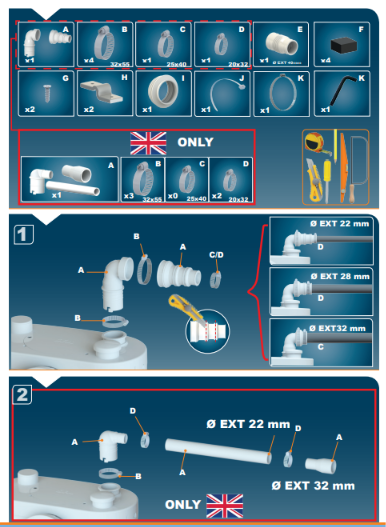

Saniflo Sanitop UP installation components

Sanitop UP discharge fittings and installation components.

Sanitop UP WC connection and installation arrangement.

WC INSTALLATION

Positioning the Sanitop Behind the Toilet

The installation diagram specifies a maximum distance of 20 cm between the toilet outlet and the Sanitop.

Maximum WC Connection Distance: 20 cm

Keep the macerator close to the horizontal WC outlet. Do not extend the toilet connection beyond the maximum distance shown in the supplied installation instructions.

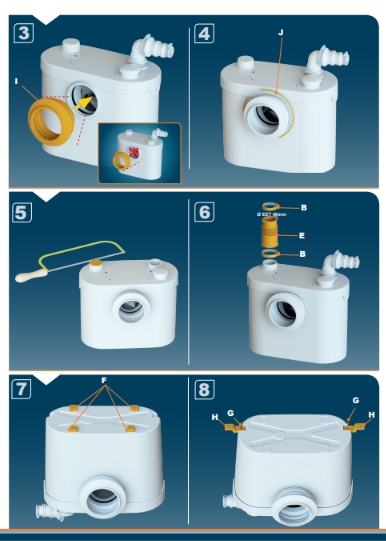

Saniflo Sanitop UP connection installation

Sanitop UP connection and fitting instructions.

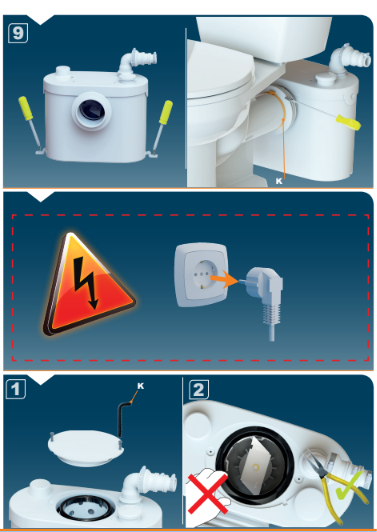

Saniflo Sanitop UP fixing and maintenance access

Sanitop UP fixing, WC connection and maintenance access.

DISCHARGE PERFORMANCE

Sanitop UP Pumping Distances

The available horizontal pumping distance reduces as vertical lift increases. Use the manufacturer's relationship below when planning the discharge route.

1 metre vertical lift

Maximum 90 metres horizontal

2 metres vertical lift

Maximum 80 metres horizontal

3 metres vertical lift

Maximum 60 metres horizontal

4 metres vertical lift

Maximum 40 metres horizontal

5 metres vertical lift

Maximum 20 metres horizontal

ℹ️

Maximum vertical and horizontal distances are not simultaneous.

For example, when lifting vertically by the maximum 5 metres, the supplied installation guide shows a maximum horizontal distance of 20 metres.

Saniflo Sanitop UP technical specifications and pumping curve

Sanitop UP technical information, dimensions and pumping performance.

TECHNICAL INFORMATION

Saniflo Sanitop UP 6002 Specifications

Product

Saniflo Sanitop UP

Product Code

6002

Application

Domestic only

Suitable For

WC + Wash Basin

Number of Inlets

External Inlet Diameter

40 / 100 mm

External Discharge Diameter

22 / 28 / 32 mm

Motor Power

400 W

Voltage / Frequency

220–240 V / 50–60 Hz

Maximum Incoming Temperature

35°C

Recommended Maximum Height

5 metres

Noise Level

46 dB(A)

IP Rating

IP44

Electrical Class

Class I

Cutter

Single blade cutter

Gross Weight

6 kg

Barcode

3308815074061

Standard

EN 12050-3

ELECTRICAL CONNECTION

UK Electrical Installation

Electrical installation must be completed in accordance with the supplied Saniflo instructions and applicable electrical requirements.

⚡

Electrical installation must be carried out by a qualified electrical engineer.

The supplied GB instructions specify a 220–240 V single-phase AC 50 Hz supply. The unit should not be connected to a conventional plug and socket. The manual specifies a fused, unswitched fixed wiring connector fitted with a 5 amp fuse. Disconnect the electrical supply before carrying out work on the unit.

AFTER INSTALLATION

Commissioning & Final Checks

✓ Flush the WC and confirm the Sanitop activates correctly.

✓ Check all seals and plumbing connections for leaks.

✓ Inspect the pumped discharge pipework.

✓ Run water through the connected wash basin and check its connection.

✓ Confirm the macerator is positioned on a level surface.

✓ Keep the unit accessible for future inspection and servicing.

IN THE BOX

Sanitop UP Pack Contents

✓ Sanitop UP macerator

✓ Non-return valve

✓ Connection components

✓ Activated carbon filter to help neutralise odours

MAINTENANCE

Looking After Your Sanitop UP

🧴

Descaling

The operating manual recommends using a suitable household descaler, such as Saniflo Descaler, to remove scale and clean the macerator and WC bowl.

🔍

Keep Access Clear

The unit must remain easily accessible for checks, maintenance and servicing.

❄️

Prolonged Absence

During prolonged absence, turn off the general water supply and protect the installation against frost.

⚙️

Foreign Objects

Foreign objects can obstruct the macerator and may cause rattling, humming or prevent the motor from running.

TROUBLESHOOTING

Common Sanitop UP Problems

The motor does not activate

Check that electrical power is available. The manual also identifies a defective electrical supply, motor or control system as possible causes.

The motor rattles, crunches or hums but does not run

A foreign object may be inside the unit. A motor or control system problem is another possible cause. Disconnect the macerator from the electrical supply before intervention.

The Sanitop activates intermittently

Check connected sanitary appliances for leaks. The manual also identifies a faulty non-return valve as a possible cause.

The motor continues running for too long

Check whether the discharge installation exceeds the permitted length or height or contains too many bends or elbows. An occluded pump cover plate is another possible cause.

The Sanitop suddenly stops

The thermal cut-out may have activated after the unit has been running for too long. Allow the unit to reset and seek appropriate servicing if the problem continues.
